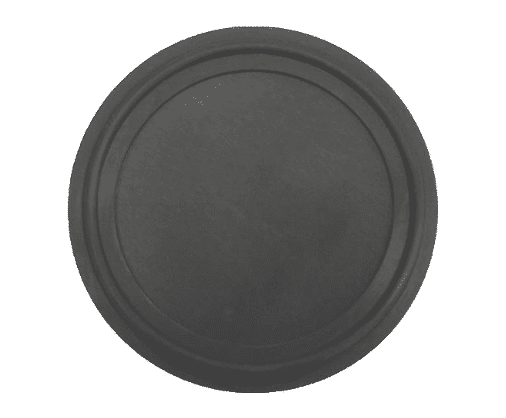

    EPDM Gauge Guard Isolator Gasket

    £32.68£38.06 exVAT

    or Request a quote
    Part Number: Please select variant

    Where are EPDM gauge guard isolator gaskets used?

    EPDM gauge guard isolator gaskets are used widely in the food, dairy, beverage, biotech, pharmaceutical, and all other sanitary process industries to protect expensive stainless steel diaphragms and instruments from damage without affecting instrument performance.

    Why Choose an EPDM gauge guard isolator gasket?

    EPDM compounds are specified by many of our process equipment manufacturers.

    By combining a quality sanitary gasket with a membrane, the gauge guard isolator gasket isolates hot or caustic saline solution from instrumentation, a necessary and cost effective step in assuring long life and accurate results from your instruments and gauges.

    As some manufacturers will suggest the use of a gauge guard gasket, others note that the failure to use a gauge guard gasket can void most instrument and gauge warranties.

    Where not to use an EPDM gauge guard isolator gasket

    EPDM gaskets are most suitable for use in low-pressure steam applications – if you want to get high you’ll pay the price if you stick with an EPDM gasket.

    Fancy an upgrade?

    Why not read our very thorough (and not at all boring) guide to all things gasket related to find out how you could upgrade your process.

    Read More Here.

    EPDM Gauge Guard Isolator Gasket usually ship in 3-5 days

    Setting new standards for purity

    Up close and personal

    Temperature range:
    -34°C to 121°C

    Applications:
    Single Use, Gauge Protection, Instrument Protection

    Material:
    EPDM

    PTL / EPDM Gauge Guard Isolator Gasket

    Scroll like it's your birthday

    Setting new standards for purity

    The benefits

    PTL / EPDM Gauge Guard Isolator Gasket

    Scroll like it's your birthday

    EPDM Gauge Guard Isolator Gasket

    Everything you need to know

    Setting new standards for purity

    • USP Class VI
    • FDA 21CFR 177.2600
    • ADI Free, BSE&TSE Free,
    • 3-A Sanitary Standard

    Part Numbers

    EPDM Gauge Guard Isolator Gasket Part Number
    Part Number Size

    42GGI-E-075

    0.75″

    40GGI-E-100

    1″

    40GGI-E-150

    1.5″

    40GGI-E-200

    2″

    PTL / EPDM Gauge Guard Isolator Gasket
