    Thermocouple Clamp/Smart Gasket® Clamp

    £122.17£243.39 exVAT

    or Request a quote
    Part Number: Please select variant

    Where are Thermocouple Clamp/Smart Gasket® Clamps used?

    Companies in the food, beverage, and biopharmaceutical industries depend on clamps to join different parts of their process lines together. They ensure a well-sealed and leak proof join (when assembled properly that is).

    Two flanged ends are brought together with a gasket between them and a clamp to seal the join.

    Thermocouple Clamp/Smart Gasket® Clamps are used where measurements are required, such as in high-purity pharmaceutical systems

    Why choose Thermocouple Clamp/Smart Gasket® Clamps?

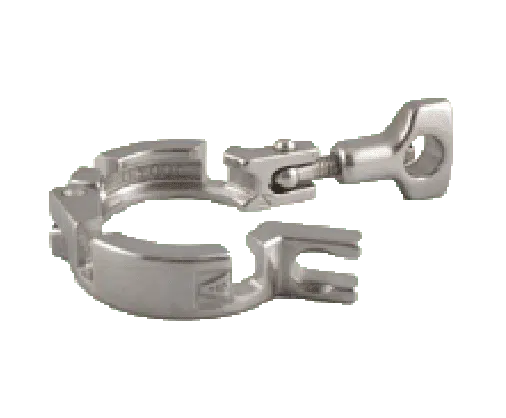

    Rubber Fab Thermocouple Hinge Clamp (Smart Gasket® clamp) provides up to four internal ports for accepting the Smart Gasket thermocouple samples or accessories.

    Also comes in GOLD!

    Where not to use a Thermocouple Clamp/Smart Gasket® Clamp

    This clamp is only required to accommodate a Smart Gasket® for validation and measuring purposes. If you do not need to use a Smart Gasket® then select one of our other clamps – see our full line here.

    How not to use a standard tri-clamp

    You don’t been to be the Hulk to assemble a tri-clamp and many a process line has fallen foul of an over tightened clamp! Check out our in-house comic ‘The Gasket Squasher’ if you don’t believe us! (OK, it’s more of a super-helpful and informative brochure than a comic, but it’s still a fun read).

    AND Never forget that it is of critical importance to choose the right gasket for your process – the right clamp can never compensate for the a poorly selected gasket.

    Want to make sure you always choose the right gasket for the job? Why not read our guide to Everything You Ever Wanted to Know About Gaskets.

    Thermocouple Clamp/Smart Gasket® Clamp usually ship in 3-5 days

    Setting new standards for purity

    Up close and personal

    Temperature range:
    -60°C to +200°C

    Applications:
    Thermal Mapping, Sampling

    Material:
    304 Stainless Steel, 316 Stainless Steel

    PTL / Thermocouple Clamp/Smart Gasket® Clamp

    Scroll like it's your birthday

    Setting new standards for purity

    The benefits

    PTL / Thermocouple Clamp/Smart Gasket® Clamp

    Scroll like it's your birthday

    Thermocouple Clamp/Smart Gasket® Clamp

    Everything you need to know

    Part Numbers

    Thermocouple/Smart Gasket® Clamp
    Size Part Number Description Port
    0.5″ and 0.75″ CL-TH-050/075-1 0.5″ & 0.75″ Thermocouple Smart Gasket® Clamp 1
    0.5″ and 0.75″ CL-TH-050/075-2 0.5″ & 0.75″ Thermocouple Smart Gasket® Clamp 2
    0.5″ and 0.75″ CL-TH0-50/075-3 0.5″ & 0.75″ Thermocouple Smart Gasket® Clamp 3
    0.5″ and 0.75″ CL-TH-050/075-4 0.5″ & 0.75″ Thermocouple Smart Gasket® Clamp 4
    1″ and 1.5″ CL-TH-100/150-1 1″ & 1.5″ Thermocouple Smart Gasket® Clamp 1
    1″ and 1.5″ CL-TH-100/150-2 1″ & 1.5″ Thermocouple Smart Gasket® Clamp 2
    1″ and 1.5″ CL-TH-100/150-3 1″ & 1.5″ Thermocouple Smart Gasket® Clamp 3
    1″ and 1.5″ CL-TH-100/150-4 1″ & 1.5″ Thermocouple Smart Gasket® Clamp 4
    2″ CL-TH-200-1 2″ Thermocouple Smart Gasket® Clamp 1
    2″ CL-TH-200-2 2″ Thermocouple Smart Gasket® Clamp 2
    2″ CL-TH-200-3 2″ Thermocouple Smart Gasket® Clamp 3
    2″ CL-TH-200-4 2″ Thermocouple Smart Gasket® Clamp 4
    3″ CL-TH-300-1 3″ Thermocouple Smart Gasket® Clamp 1
    3″ CL-TH-300-2 3″ Thermocouple Smart Gasket® Clamp 2
    3″ CL-TH-300-3 3″ Thermocouple Smart Gasket® Clamp 3
    3″ CL-TH-300-4 3″ Thermocouple Smart Gasket® Clamp 4
    4″ CL-TH-400-1 4″ Thermocouple Smart Gasket® Clamp 1
    4″ CL-TH-400-2 4″ Thermocouple Smart Gasket® Clamp 2
    4″ CL-TH-400-3 4″ Thermocouple Smart Gasket® Clamp 3
    4″ CL-TH-400-4 4″ Thermocouple Smart Gasket® Clamp 4
